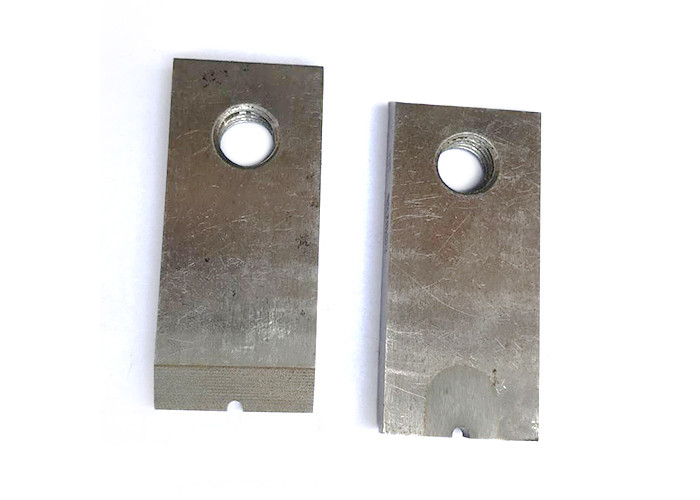

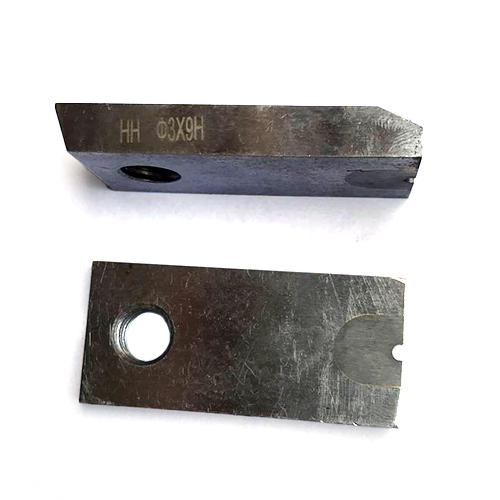

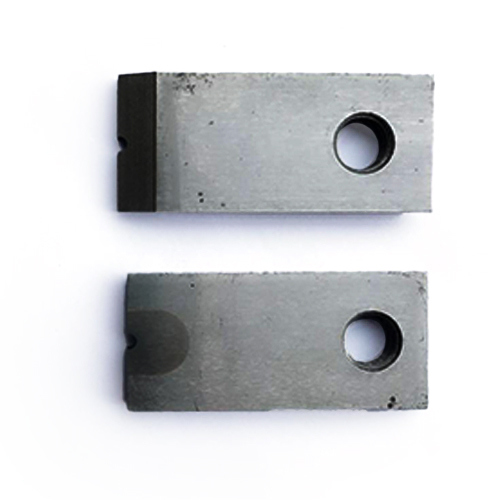

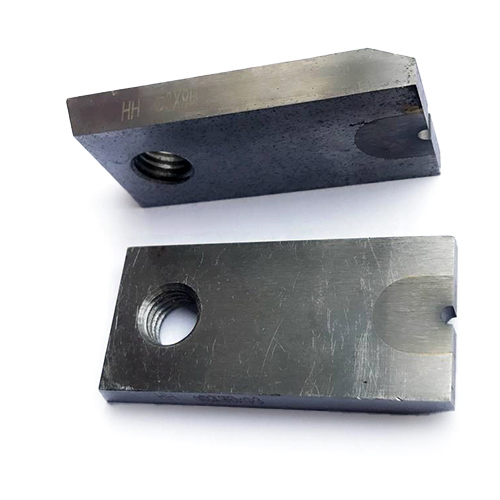

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

YG15 Material Tungsten Carbide Die

Customized Size Carbide Cutter Die

Steel Case Screw Mold Die

Menşe yeri:

Chongqing, Çin

Marka adı:

Henghui

Sertifika:

ISO 9001.2015

Model numarası:

Oem

Bizimle İletişim

Teklif Alın

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

Ürün detayları

Şekillendirme modu:

Dövme Kalıp

Ürün malzemesi:

Çelik ve Karbür Die

Tolerans:

+/- 0.01mm

Boyut:

özelleştirilmiş

Tasarım yazılımı:

CAD

Yüzey tedavisi:

Parlatma

Karbür Malzeme:

VA80

Vaka malzemesi:

Çelik

Ortak içerik:

% 20

Tahıl boyutu:

3~6

Yoğunluk:

13.58 g/cm²

Sertlik:

84.0 İK

TRS:

280 kgf/mm²

Darbe gücü:

0.85 kgf/m-cm²

Vaka sertliği:

HRC46-48

Ödeme ve Nakliye Şartları

Min sipariş miktarı

İlişkili Ürünler

Endüstriyel Vida Zımbası Aleti Sertleştirilmiş Çelik Hızlı Değişim Zımbası Yüksek Hassasiyetli CNC İşlenmiş

En İyi Fiyatı Alın

Customized Cold Heading Nut Mold with Alloy Material and Square Shape for Industrial Applications

En İyi Fiyatı Alın

Precision Thread Rolling Die with +/-0.01mm Tolerance High Accuracy and Long Life for Screw Making

En İyi Fiyatı Alın

YG15 Material Tungsten Carbide Die with Customized Size and Steel Case for Screw Making

En İyi Fiyatı Alın

Bizimle İletişim

+8613983025528

hou@citool.com

86-023-60338218-60338218

Şimdi iletişime geçin

Ürün Açıklaması

Factory Price Carbide Cutter Die Screw Mold With Material of YG15 Cutting Knife

Product Description

Insert Material Options

We offer various carbide materials tailored for different applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Medium-Grained
KG2	6.50%	2~3 μm	14.90 g/cm²	90.5 HRA	320 Kgf/mm²	0.28 Kgf/m-cm²	Drawing die
KG3	9%	2~3 μm	14.61 g/cm²	89.3 HRA	340 Kgf/mm²	0.52 Kgf/m-cm²	Extrusion die
KG5	12%	2~3 μm	14.31 g/cm²	88.3 HRA	340 Kgf/mm²	0.58 Kgf/m-cm²	Extrusion die
KG6	14%	2~3 μm	14.12 g/cm²	87.3 HRA	320 Kgf/mm²	0.65 Kgf/m-cm²	Extrusion die
Coarse-Grained
ST6	15%	3~6 μm	13.80 g/cm²	86.0 HRA	270 Kgf/mm²	0.78 Kgf/m-cm²	Stainless steel
ST7	20%	2~6 μm	13.40 g/cm²	85.3 HRA	270 Kgf/mm²	0.80 Kgf/m-cm²	Stainless steel
EA65	18%	2~6 μm	13.73 g/cm²	85.0 HRA	300 Kgf/mm²	0.80 Kgf/m-cm²	Carbon steel screw/cutting die
VA80	20%	3~6 μm	13.58 g/cm²	84.0 HRA	280 Kgf/mm²	0.85 Kgf/m-cm²	Impact resistance
VA90	22%	6~9 μm	13.39 g/cm²	82.5 HRA	240 Kgf/mm²	0.90 Kgf/m-cm²	Impact resistance
EA90	24%	2~6 μm	13.22 g/cm²	82.8 HRA	270 Kgf/mm²	0.90 Kgf/m-cm²	Impact resistance

Case Material

Primary case material: H13 (SKD61) HRC46-48

SKD61 (H13) Chemical Composition
Element	C	Si	Mn	P	S	Cr	Mo	V
Content (%)	0.39	1.15	0.44	0.021	0.007	5.12	1.3	0.94
Element	W	Cu	Ni
Content (%)	0.06	0.05	0.06

Surface Treatment

Available treatments: TiN / TiAlN

Inspection Equipment

Company Profile

About Chongqing Henghui Precision Mold Co., Ltd

Located in Chongqing, we specialize in developing, producing, and selling high-quality tungsten carbide dies. Our products are manufactured using high-precision equipment and rigorous quality control processes, supported by experienced technical engineers and quality inspection teams. We operate under ISO 9001 quality management and ERP systems.

Our products serve the Asian market and are exported to Europe, America, and Southeast Asia, recognized for their precision, efficiency, stability, and durability. Our customer-focused sales team provides attentive service to create maximum value for clients.

Exhibition Participation

Customer Commitment

We actively participate in international exhibitions including Russia, Mexico, Turkey, Shanghai, German Fastener, and Indian Fastener exhibitions. These events allow us to connect with new partners while maintaining relationships with existing clients.

At each exhibition, we carefully prepare samples that consistently impress attendees with their design, competitive pricing, and superior quality.
