Name: Custom Carbide Screw Mold for Fastener Manufacturing
Brand: Chongqing Henghui Precision Mold Co., Limited
SKU: Özelleştirilmiş
Price: 250.00 USD
Availability: InStock

Evde > Ürünler > Karbid yumruklar ve ölçekler >

Custom Carbide Screw Mold for Fastener Manufacturing

custom carbide screw mold

carbide fastener manufacturing die

screw mold with warranty

Menşe yeri:

Chongqing, Çin

Marka adı:

Henghui

Model numarası:

Özelleştirilmiş

Bizimle İletişim

Teklif Alın

Custom Carbide Screw Mold for Fastener Manufacturing

Ürün detayları

Şekillendirme modu:

Preform kalıp

Ürün malzemesi:

Çelik, Çelik ve karbür

Malzeme Türleri:

VA80, ST6, ST7, KG5, KG6

Şekillendirme Kalıbı:

Dövme Kalıp

Tolerans:

+/-0,01

Vaka malzemesi:

SKD61 veya H13

Malzeme Ekle:

% 6,50 -% 24

Tahıl boyutu:

2 ~ 3 μm - 6 ~ 9 μm

Yoğunluk:

13.22 - 14.90 g/cm²

Sertlik:

82.5 - 90.5 HRA

TRS:

240 - 340 kgf/mm²

Darbe gücü:

0.28 - 0.90 kgf/m -cm²

Yüzey tedavisi:

Teneke / Tialn

Kimyasal bileşim:

C%0.39, SI%1.15, MN%0.44, P%0.021, S 0.007, CR%5.12, MO%1.3, V%0.94, W 0.06%

eşmerkezlilik:

0.01mm

Ödeme ve Nakliye Şartları

Min sipariş miktarı

İlişkili Ürünler

High Precision Carbide Die for Screw Extrusion Mould

En İyi Fiyatı Alın

Custom Hex Trimming Die Carbide CVD Coating Industrial Mold

En İyi Fiyatı Alın

Custom Tungsten Carbide Die Mold for Nuts M12-M20 Forging Mould

En İyi Fiyatı Alın

DC53 Thread Rolling Dies for Self Tapping Screw Making Molds

En İyi Fiyatı Alın

Bizimle İletişim

+8613983025528

hou@citool.com

86-023-60338218-60338218

Şimdi iletişime geçin

Ürün Açıklaması

Customized OEM/ODM Fastener Mold Carbide Material Screw Mold

Product Specifications

Shaping Mode	Preform Mould
Product Material	Steel, Steel and carbide
Product	Vehicle Mould
Material	VA80, ST6, ST7, KG5, KG6
Shaping Mold	Forging Mould
Tolerance	+/-0.01
Sharp	According to drawings
Usage	For making screws
Mould life	Long life time
Case material	SKD61 or H13
Application	Industry

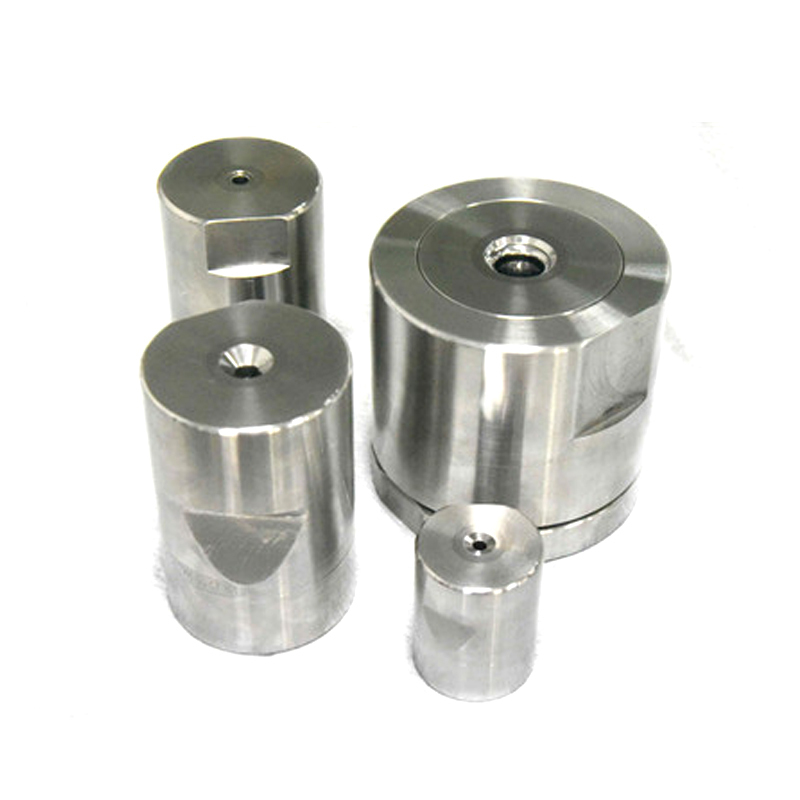

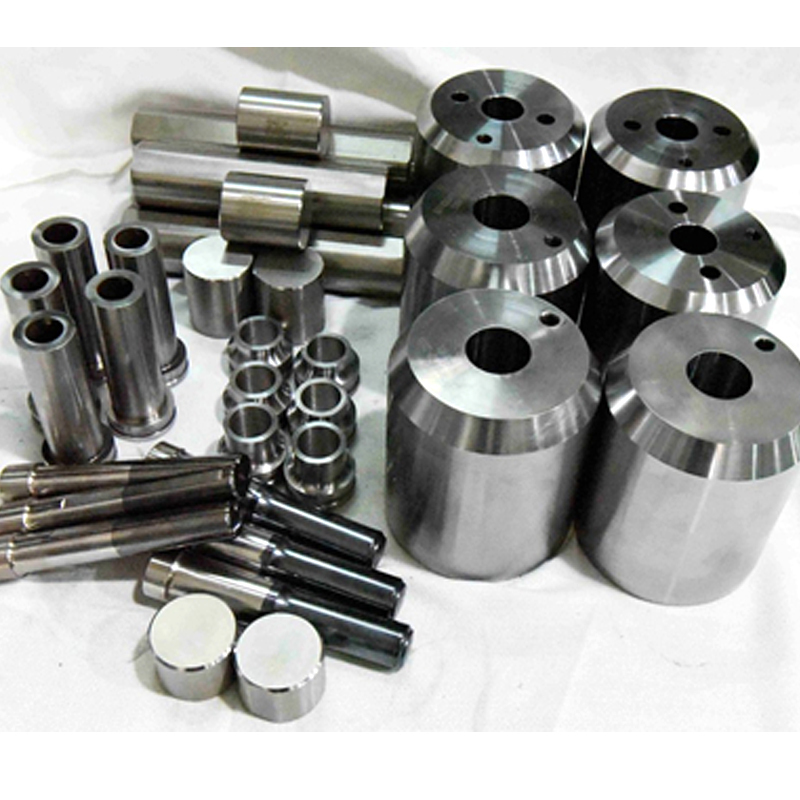

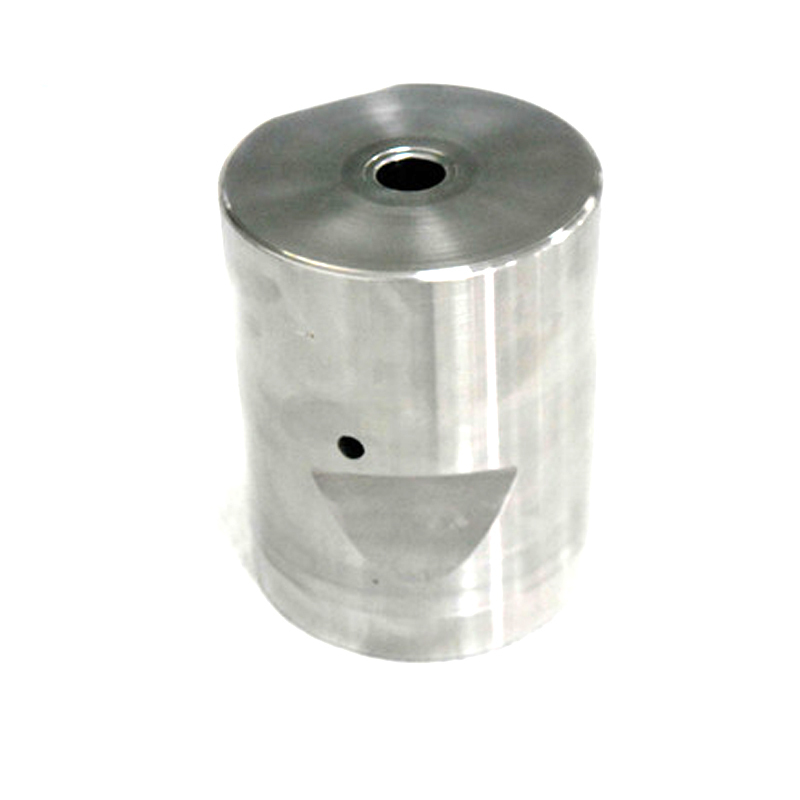

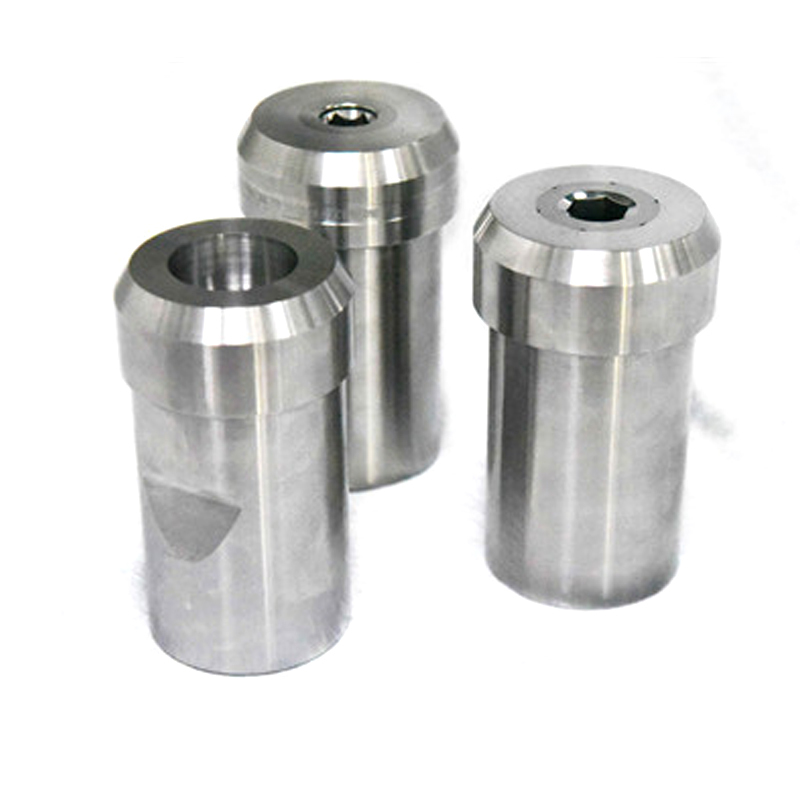

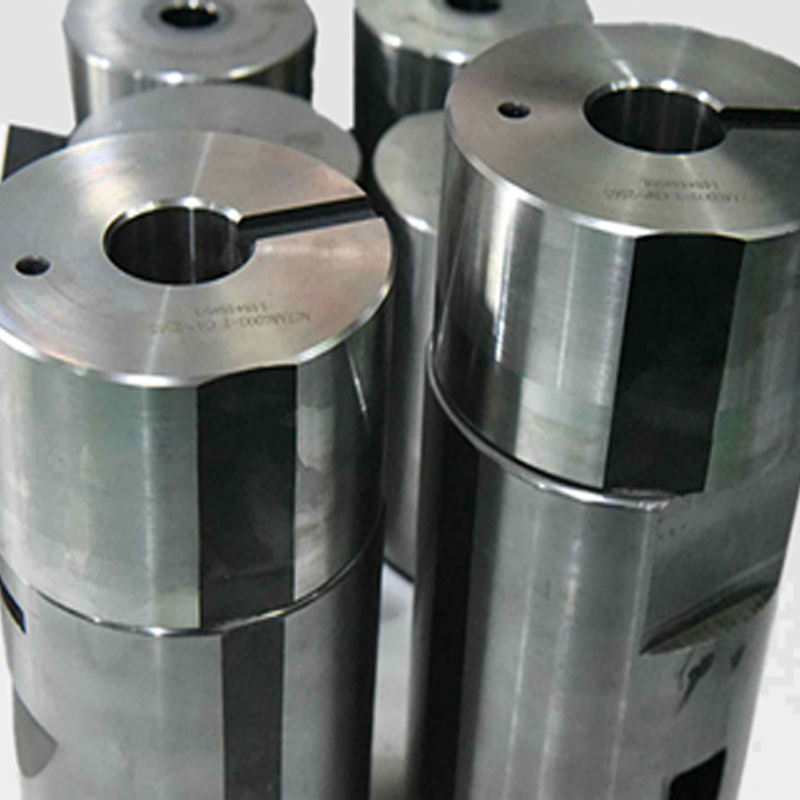

Product Images

Insert Material Options

We provide various carbide materials tailored to different applications:

Item	Co	Grain Size	Density	Hardness	TRS	Impact Strength	Application
Medium-Grained
KG2	6.50%	2~3	14.90	90.5	320	0.28	Drawing die
KG3	9%	2~3	14.61	89.3	340	0.52	Extrusion die
KG5	12%	2~3	14.31	88.3	340	0.58	Extrusion die
KG6	14%	2~3	14.12	87.3	320	0.65	Extrusion die
Coarse-Grained
ST6	15%	3~6	13.80	86.0	270	0.78	Stainless steel
ST7	20%	2~6	13.40	85.3	270	0.80	Stainless steel
EA65	18%	2~6	13.73	85.0	300	0.80	Carbon steel screw/cutting die
VA80	20%	3~6	13.58	84.0	280	0.85	Impact resistance
VA90	22%	6~9	13.39	82.5	240	0.90	Impact resistance
EA90	24%	2~6	13.22	82.8	270	0.90	Impact resistance

Case Material

Primary case material: H13(SKD61) HRC46-48

Chemical Composition (SKD61/H13)
C	Si	Mn	P	S	Cr	Mo	V	W
0.39%	1.15%	0.44%	0.021%	0.007%	5.12%	1.3%	0.94%	0.06%
Cu	Ni
0.05%	0.06%

Surface Treatment

Available treatments: TiN / TiAlN

Manufacturing Facility

About Chongqing Henghui Precision Mold Co., Ltd.

We specialize in precision mold manufacturing with advanced equipment including CNC lathes, machining centers, grinding machines, and EDM machines. Our quality assurance includes Rockwell Hardness Testers, Projectors, and 3D Image Measuring Instruments.

We use high-quality tungsten carbide materials and professional vacuum heat treatment to produce molds with:

Relative standard deviation controlled within 0.005mm
Concentricity controlled within 0.01mm

Certified under ISO9001:2015 quality management system, we serve customers globally including Southeast Asia, Europe, and the United States.

Exhibition Participation

We actively participate in international fastener exhibitions including German Fastener Exhibition and Indian Fastener Exhibition, showcasing our latest products and technologies.

Packaging & Delivery

Packaging: Carton Box; Export Standard Package, or as per client requirements.
Delivery Time: 12-45 days depending on order quantity.

Quality Inspection

Frequently Asked Questions

Q: How can I get a quotation from your company?

A: Please provide drawings, material specifications, quantity requirements, and surface treatment preferences for an accurate quote.

Q: What is your lead time?

A: Production time varies based on order quantity and destination country, typically ranging from 12-45 days.
