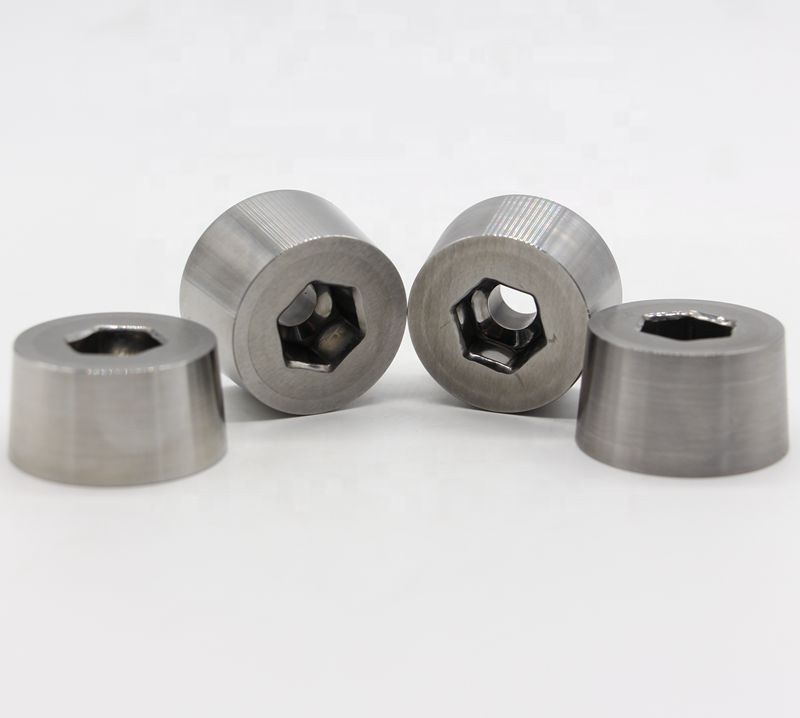

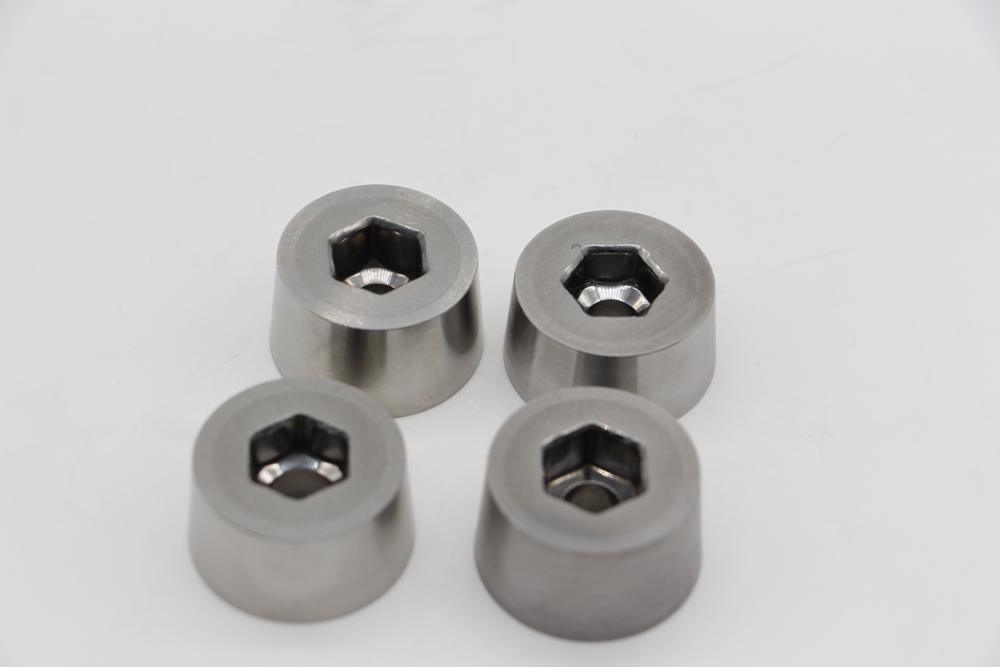

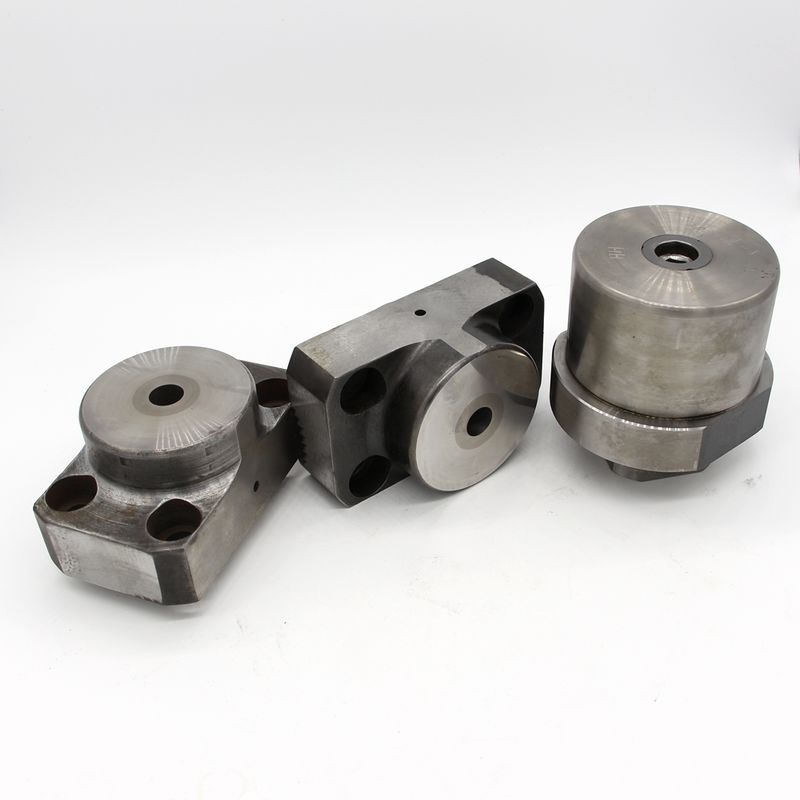

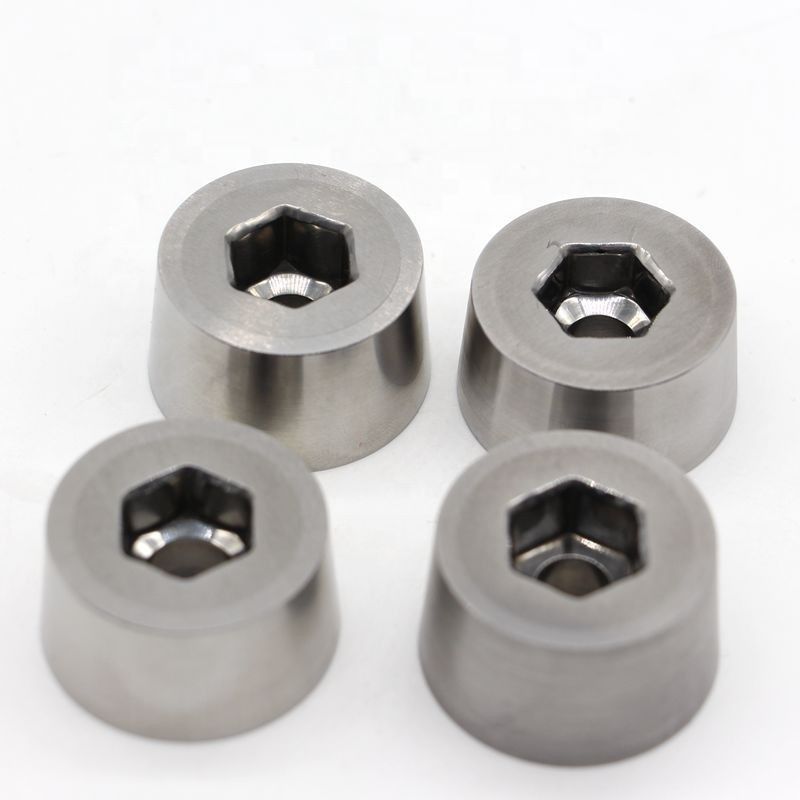

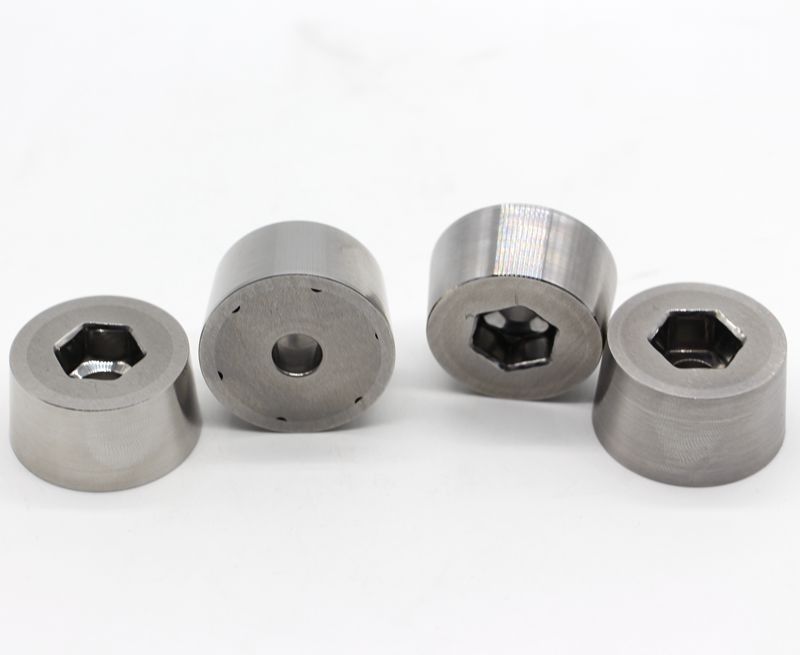

2025 New Product Tungsten Carbide Cold Forging Die For BOLT NUT Die
Product Specifications
| Attribute | Value |
| Shaping Mode | WIRE DRAWING DIE |
| Product Material | Steel |
| Product | WIRE DRAWING DIE For BOLT NUT |
| Product Name | Carbide Die |
| Material | Tungsten Carbide WIRE DRAWING DIE For BOLT NUT |
| Shape | Customized WIRE DRAWING DIE For BOLT NUT |
| Grinding Precision | 0.02mm WIRE DRAWING DIE For BOLT NUT |
| Hardness | According to the Material of WIRE DRAWING DIE For BOLT NUT |
| Standard | DIN, ANSI, GB, ISO etc. |
| Grade | VA80, VA90 |
| Surface | Machined or Blank WIRE DRAWING DIE For BOLT NUT |
| Application | NUT |
| Properties | Wear Resistance / Long Lifetime WIRE DRAWING DIE For BOLT NUT |
Product Description
Insert Material
We can suggest different carbide material according to different usage.
| Item | Co | Grain Size | Density | Hardness | TRS | Impact Strength | Application |
| Mediun-Grained |
| KG2 | 6.50% | 2~3 | 14.90 | 90.5 | 320 | 0.28 | Drawing die |
| KG3 | 9% | 2~3 | 14.61 | 89.3 | 340 | 0.52 | Extrusion die |
| KG5 | 12% | 2~3 | 14.31 | 88.3 | 340 | 0.58 | Extrusion die |
| KG6 | 14% | 2~3 | 14.12 | 87.3 | 320 | 0.65 | Extrusion die |
| Coarse-Grained |
| ST6 | 15% | 3~6 | 13.80 | 86.0 | 270 | 0.78 | Stainless steel |
| ST7 | 20% | 2~6 | 13.40 | 85.3 | 270 | 0.80 | Stainless steel |
| EA65 | 18% | 2~6 | 13.73 | 85.0 | 300 | 0.80 | Carbon steel screw/cutting die |
| VA80 | 20% | 3~6 | 13.58 | 84.0 | 280 | 0.85 | Impact resistance |
| VA90 | 22% | 6~9 | 13.39 | 82.5 | 240 | 0.90 | Impact resistance |
| EA90 | 24% | 2~6 | 13.22 | 82.8 | 270 | 0.90 | Impact resistance |
Case Material
Our main case material is H13(SKD61) HRC46-48
| SKD61(H13) Chemical Composition |
| C | Si | Mn | P | S | Cr | Mo | V | W |
| 0.39 | 1.15 | 0.44 | 0.021 | 0.007 | 5.12 | 1.3 | 0.94 | 0.06 |
| Cu | Ni | |
| 0.05 | 0.06 | |
Surface Treatment
TiN / TiAlN
Process
Factory
About Us
Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine, etc. We also have various types testing equipment, such as Rockwell Hardness Tester, Projector, 3D Image Measuring Instrument, etc.
Henghui using high-quality tungsten carbide material and professional vacuum heat treatment. We design, manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries. About our molds, the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm.
Strict accordance with ISO9001:2015 quality management system requirements of the operation, can ensure provide timely and high-quality service for our customers. Our products has exported to Southeast Asia, Europe and the United States. "Customer first, quality first, technology first, dedicated service" is our consistent operating principles. Warmly welcome to negotiate business with us.
Exhibition
Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.
Packing and Delivering
Packaging Details: Carton Box; Export Standard Package, Or As Client's Requirement.
Delivery Detail: According To The Quantity Of The Order, About 12-45 Days.
Inspection equipment
FAQ
Q1: How can I get a quotation from your company?
A1: Contact us. In order to quote you as soon as possible, we need the following information: drawings, Material, Quantity, Surface treatment.
Q2: What is our lead time?
A2: This will be based on the number of products you customize and the country you are in.
